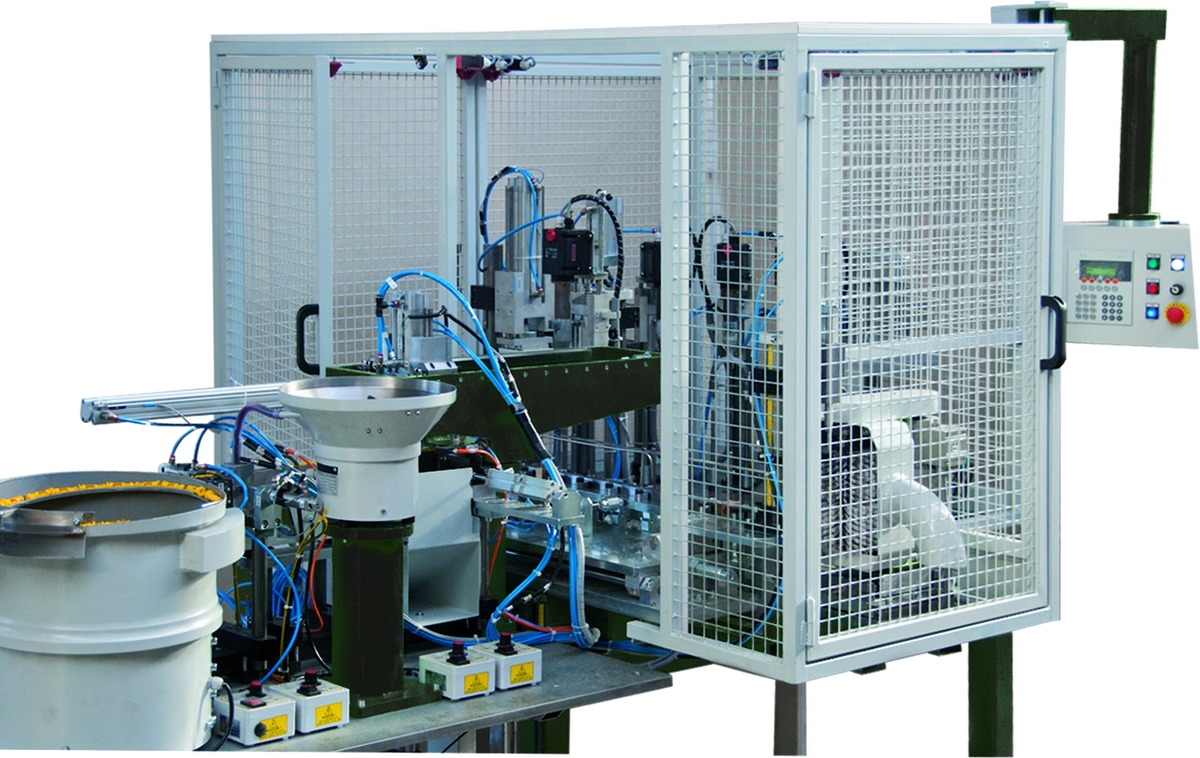

Mini roller assembling MRM

Assembly machine MRM for mini and midi paint rollers for integrated inline operation following the thermo fusion process. The process starts with the operator laying 2 blanks on the carousel followed by the automatic production steps of diameter drilling, pre-heating in 3 stages and forming of the ends. At the same time the plugs are pre-assembled with the bearings and fed to the assembly station by separate feeders. After the rollers have been mechanically turned and the pre-assembled plugs fed the parts are automatically assembled together by pressing. Finally the finished rollers are combed and ejected.


  • High efficiency
  • High production capacity

Technical data

Capacity up to 1,800 pieces/h, other on enquiry
Roller size 60 - 190 mm
Roller diameter 14 mm (core inside diameter), other on enquiry
Area required approx. 3.3 x 1.9 m
Compressed air supply min. 6 bar
Electrical connection 3 x 400 V/50 Hz, N/PE, 15 kW
