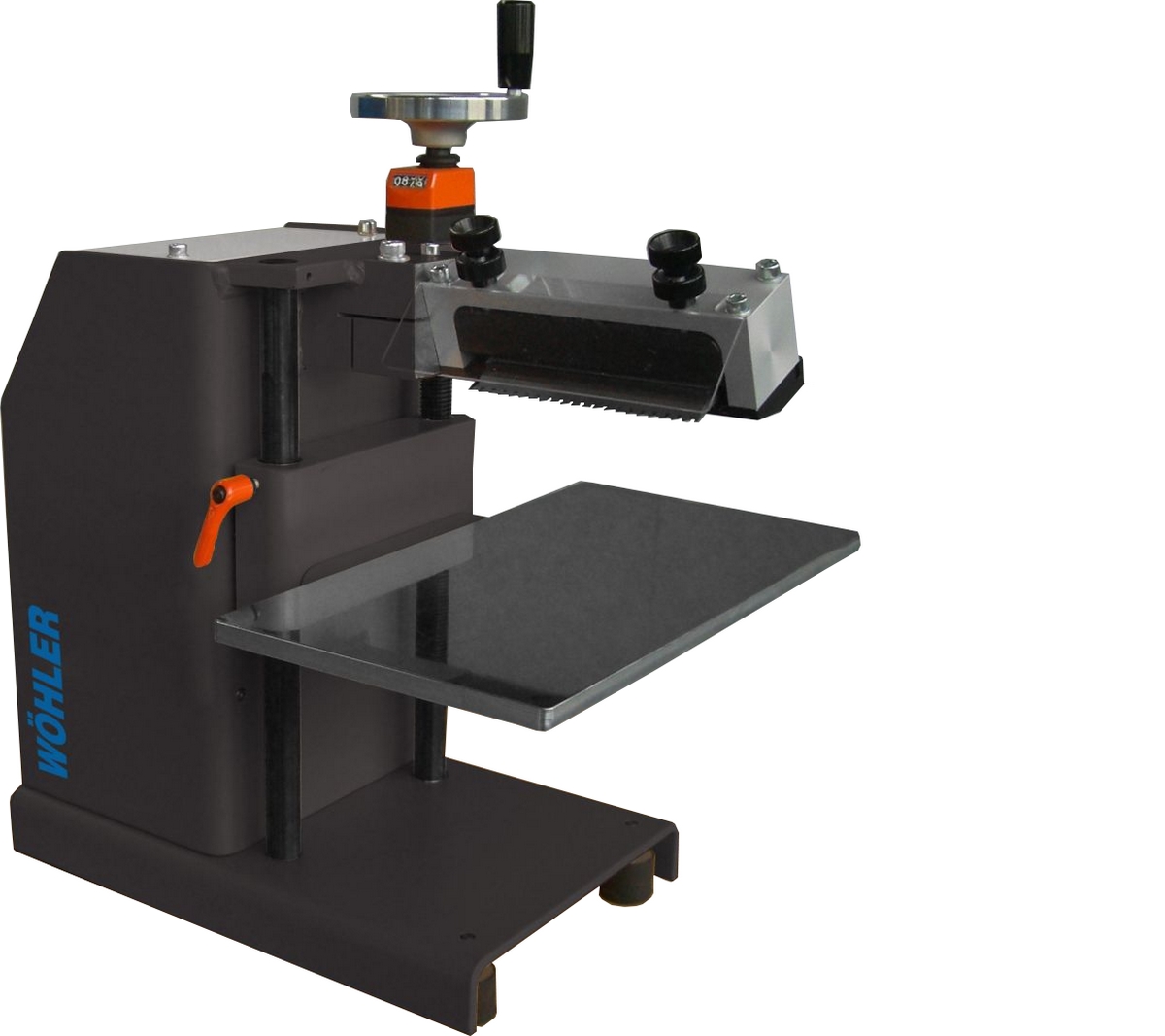

Shearing and Trimming Machine Type ZSM
for bristle bundles, round and flat paint brushes, wall brushes and other shearing
- The machine consists of a solid steel plate housing.
- The work table is adjustable in height with a digital indication.
- The cutter head can easily be exchanged and can be quickly rotated when needed.
- The machine is driven by a maintenance free rotary current electro motor.
- The transfer of energy is arranged through a ball beared piston.
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low cleaning time
- low cost production of the staples from wire coil
- eye protection
- assembly possibility of a brush guiding
- assembly possibility of an extraction nozzle
Technical data
Machine dimensions | length: 430 mm width: 380 mm height: 470 mm |
Table dimensions | length: 330 mm width: 180 mm |
Power supply | 400 V / 50 Hz |
Total connected load | 0,37 KW |
Weight | 32 kg |
